Automotive Line Products

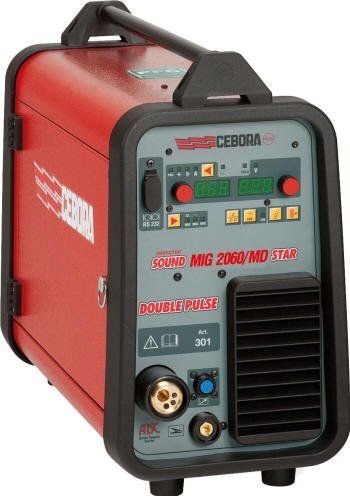

Sound MIG 2060/MD Star Double Pulse - MIG-MAG Inverter Pulse Synergic

The SOUND MIG 2060/MD STAR DOUBLE PULSE (art. 301) is a MIG-MAG inverter synergic welding machine, with pulse and double pulse functions, capable of welding and MIG brazing galvanized sheet metal, high-strength steel and aluminium alloys.

It is a power source that, thanks to the synergic pulsed technology used, is especially recommended for welding aluminium. It also offers a complete range of synergic programs for aluminium wires. Using the power source with the Cebora 2003 Push-Pull torch makes it possible to achieve optimum welding starting with Ø0.6-gauge wires.

The SOUND MIG 2060/MD STAR power source also contains saved synergic curves corresponding the CuSi 3% and CuAl8 (AlBz8) wires used for MIG brazing and welding, thus also making the power source especially suitable for MIG brazing and welding galvanized sheet metal and high-strength steels.

Two types of torches may be used with the SOUND MIG 2060/MD STAR power source: Standard MIG and Cebora Push-Pull 2003. It is also possible to work with two different types of coils: Ø 200 mm (standard version with trolley Art. 1656) or Ø 300 mm (with coil kit art. 114 and trolley art. 1656).
The power source is standard-equipped with a wide range of synergic curves in memory.
The compliance with EN 61000-3-12 brings substantial energy saving and a wide supply voltage tolerance (+15% / -20%).

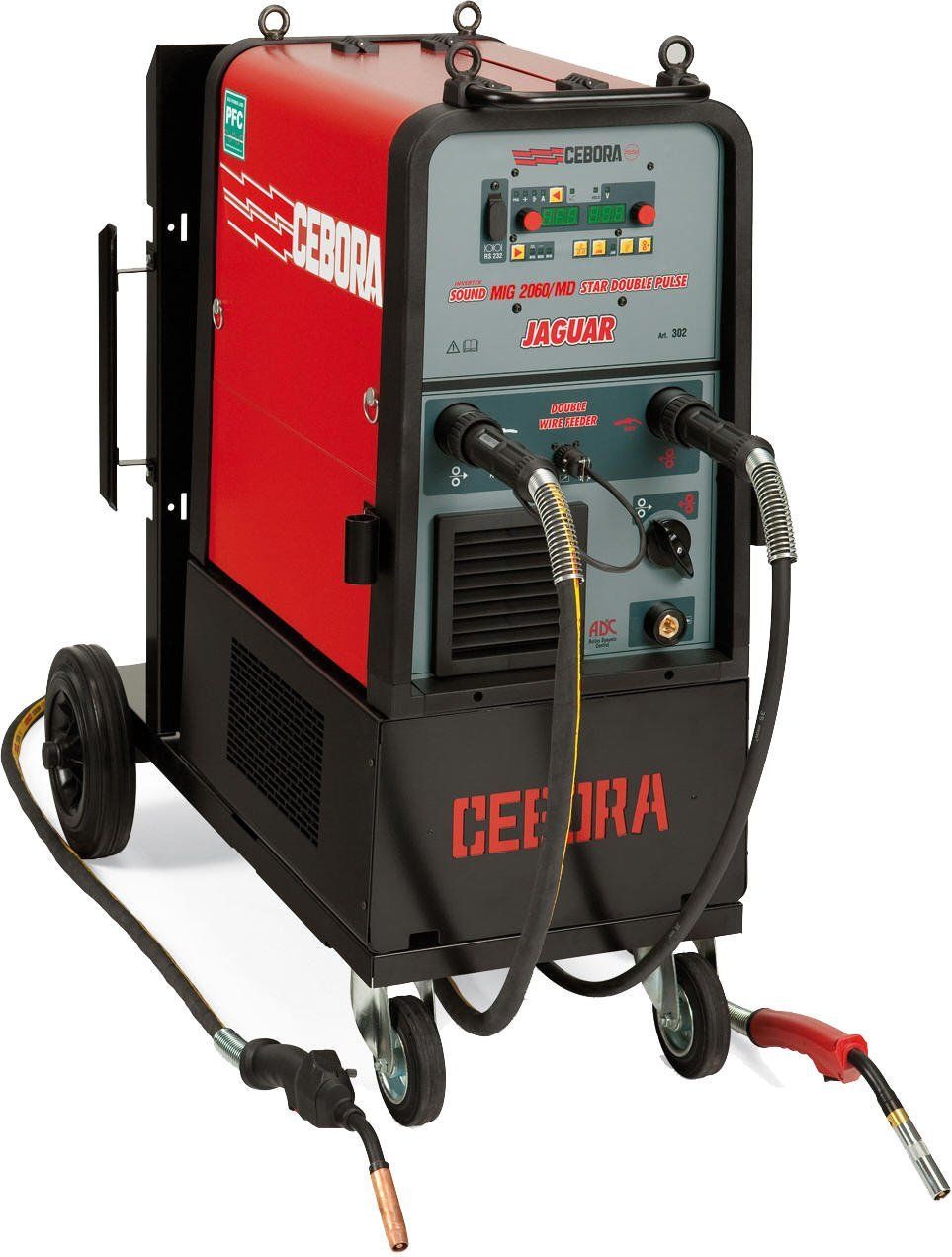

Jaguar Sound MIG 2060/MD Star Double Sound - MIG-MAG Inverter Pulse Synergic

The Jaguar Star Double Pulse is a MIG-MAG inverter synergic welding machine, with pulse and double pulse functions, capable of welding and MIG brazing galvanized sheet metal, high-strength steel and aluminium alloys.

Thanks to the presence of 2 separate wire feed motors, which makes it possible to use 2 separate wire reels, it can therefore keep 2 different types of torch mounted simultaneously with different wires, as well as use special torches such as the Push-Pull.
The Jaguar Double Pulse also makes it possible to optionally use the cooling unit art. 1683.

The Jaguar Double Pulse is the ideal response to the body's needs, faced with the increasingly widespread availability on the market of vehicles made completely, partly, or simultaneously of materials such as galvanized sheet metal, high-strength steel and aluminium alloys.
The power source is standard-equipped with a wide range of synergic curves in memory.

The compliance with EN 61000-3-12 brings substantial energy saving and a wide supply voltage tolerance (+15% / -20%).

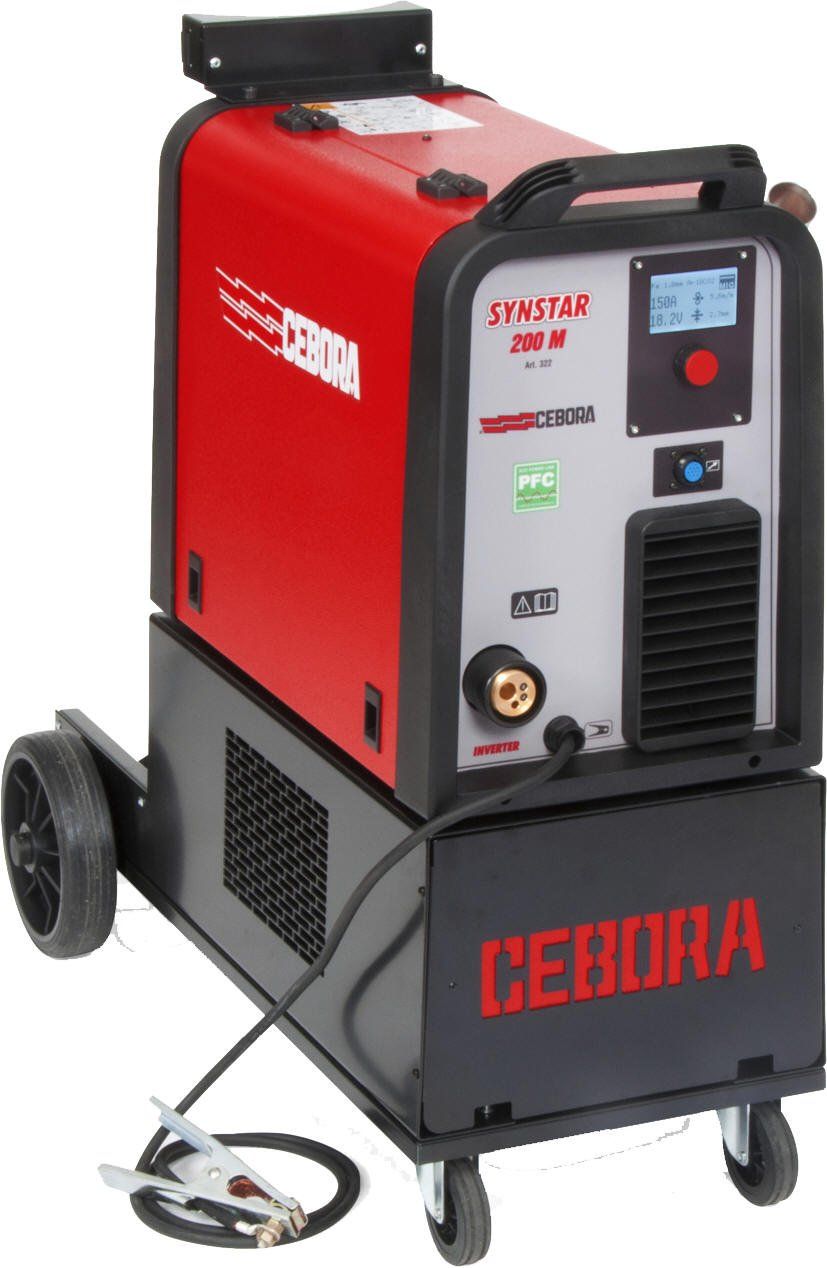

Synstar 200 M - MIG-MAG Inverter Synergic (with optional pulse)

The new SYNSTAR 200 M is an inverter single-phase synergic power source for MIG-MAG welding, with 2-roller Cebora wire feed unit.
The power source features synergic curves for Ø 0.6 / 0.8 / 0.9 / 1.0 mm solid wire as well as for Ø 0.9 mm fl ux cored wire. The cored
wires can be welded either with or without shielding gas, by simple polarity reverse.

As optional is available a pulse function upgrade (Art.238) that allows to activate devoted pulse synergic curves for mild steel, stainless steel, aluminium and Cusi3.

The LCD panel allows the operator to read wire and gas type, current and thickness, voltage and wire speed.
The power source is complete with many functions adjustable from control panel like: Arc Length, 2 time, 4 time, Spot Time, Pause Time, Inductance, Burn Back, Soft Start etc.

It is a specially versatile power source, suitable for various applications, especially repairs, maintenance and car body repairs, marked out by a low electrical input (PFC).

The Euro connector allows to use either a standard MIG torch or the Cebora Push-Pull 2003 torch. It is possible to work with two different types of coils: Ø 200 mm or Ø 300 mm. Complies with en 61000-3-12.

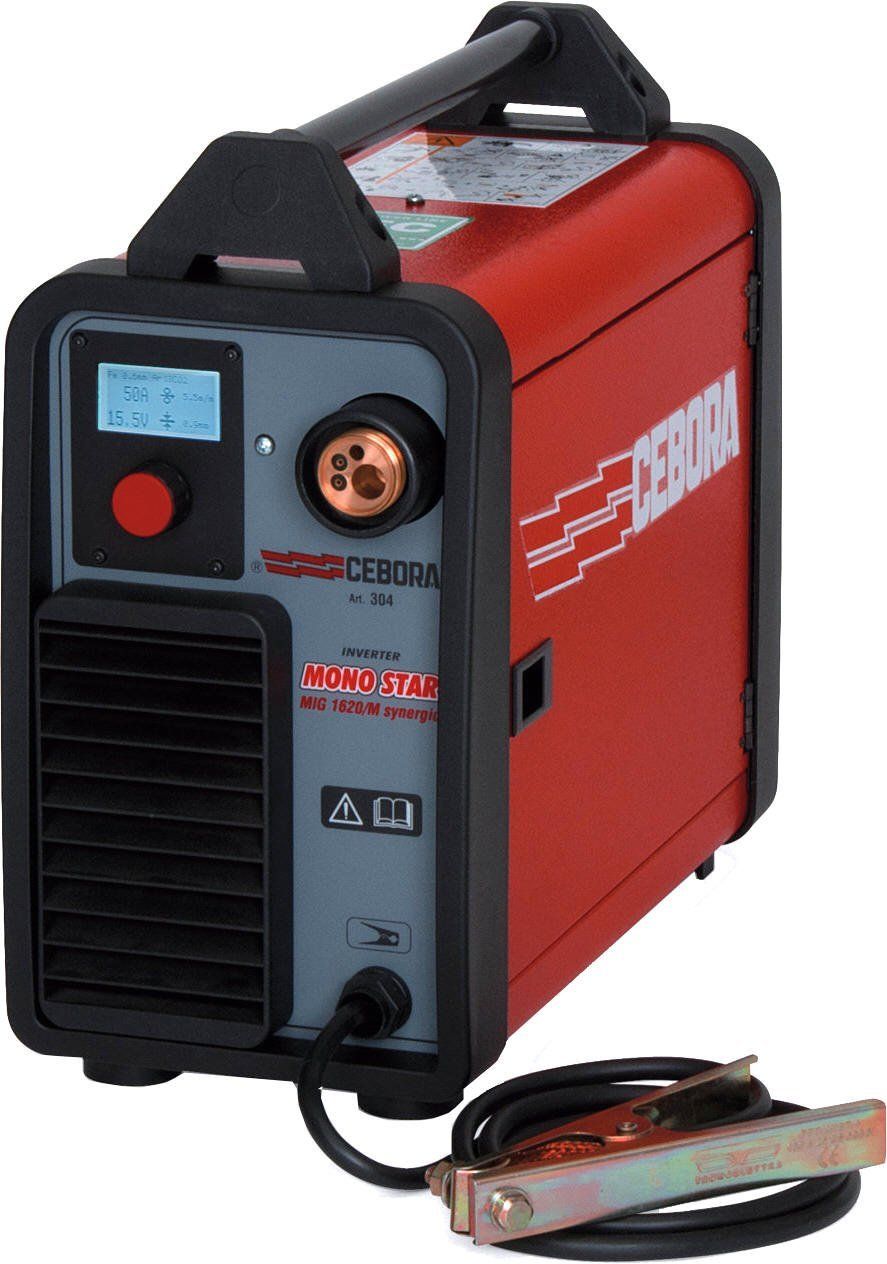

Mono Star MIG 1620/M Synergic - MIG-MAG Inverter Synergic

Inverter single-phase synergic power source for MIG-MAG welding, with 2-roller Cebora wire feed unit. The power source features synergic curves for iron wire Ø 0.6 /0.8 mm and Ø 0.9 mm flux cored wire. The cored wires can be welded, either with or without shielding gas, by simple polarity reverse. A package of optional curves for AlMg, AlSi, stainless steel and CuSi3 is available too.

The LCD panel allows the operator to read, on three lines, wire and gas type, current and thickness, voltage and wire speed.
It is a specially versatile power source, suitable for various applications, especially repairs, maintenance and basic car body repairs, marked out by a low electrical input (PFC).

The Euro connection allows to use either a standard MIG torch (art. 1246) or a "professional" type torch (art. 1638), particularly suitable for flux cored wire welding.

An optional dedicated transport trolley (art. 1653), particularly compact and handy, is available too.
Complies with EN 61000-3-12.

The power source can also be powered by motor-driven generators of adequate power (min. 6 KVA).

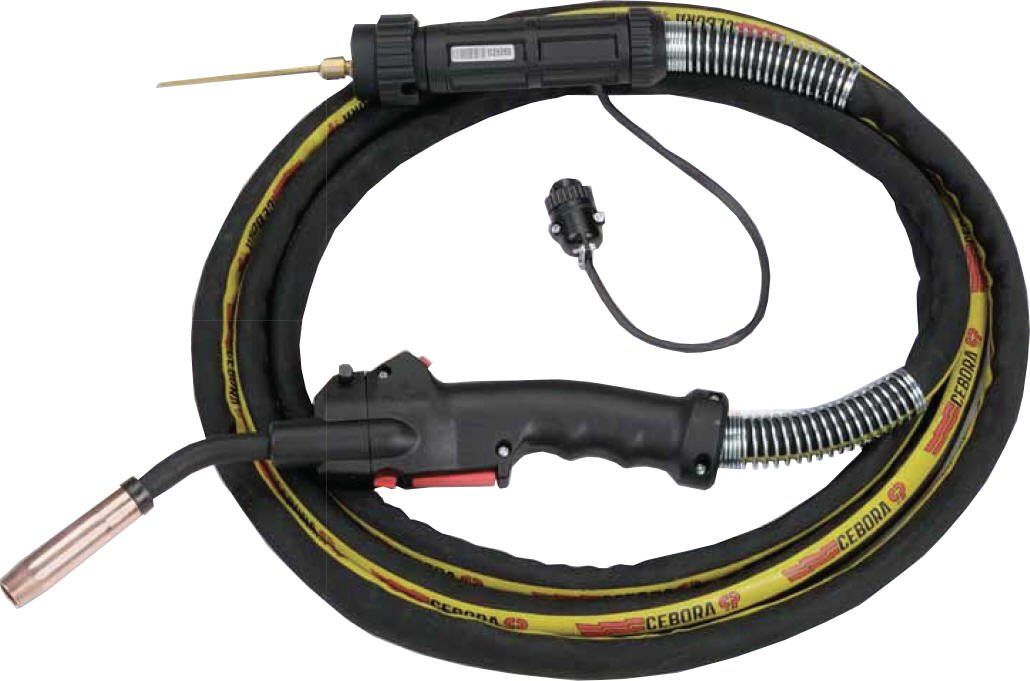

Push-Pull torch, air cooled, art. 2003 - Push-Pull Torches

The "Push-Pull" torches are equipped with a built-in wire feed motor inside the handle, synchronized with the power source wire feed motor, which allows a perfect wire feed, thanks to the double effect of pushing from the power source and pulling from the torch handle. This is particularly useful in case of small diameter wires or in case of wires of "soft" material, such as aluminium.
The Cebora Push-Pull torch art. 2003, air cooled, has the following characteristics:
  • duty cycle: 160A al 40%
  • great handiness and ergonomicity
  • Up/Down control key on the handgrip
  • torch weight: 970 grams only
  • maximum width: 66 mm
  • steady and optimal wire feeding
  • 4 m torch cable
  • suitable for solid Ø 0.6, 0.8 e 1.0 mm wires
  • recommended for welding small diameter aluminium wires (0.6 - 0.8 mm)
The Cebora Push-Pull torch art. 2003 can be used with the following Cebora power sources:

Art. 301, Sound MIG 2060/MD Star Double Pulse

Art. 302, Jaguar Sound MIG 2060/MD Star Double Pulse

Art. 322, Synstar 200 M

Power Plasma 2025/M - Plasma Inverter

POWER PLASMA 2025/M was reated to meet the need of working with an easy to handle, easy to use power source with minimal system
requirements (2,3 KVA at the maximum power) yet able to ensure excellent quality cutting on all metals.

POWER PLASMA 2025/M weights just 9,4 kg including the torch, and requires single-phase power supply; it works with compressed air provided at a pressure of 3.5 bar, with an air flow of just 55 l/min (and may thus be powered by a 25-l compressor).

  • Pilot arc “on air” operating mode, which makes it possible to work even on painted or coated metals.
  • Equipped with a 4 m new Cebora CP41C plasma cutting torch, with “on air” ignition without high frequency.
  • High electromagnetic compatibility, per IEC 60974-10, allowing the power source to be used in the vicinity of electronic equipment (such as computers, PLC, etc.).
  • Explosion-proof protection of the air reducer unit.
The compliance with EN 61000-3-12 brings substantial energy saving and a wide supply voltage tolerance (+15% / -20%).
The power source can also be powered by motor-driven generators of adequate power (min. 4KVA).

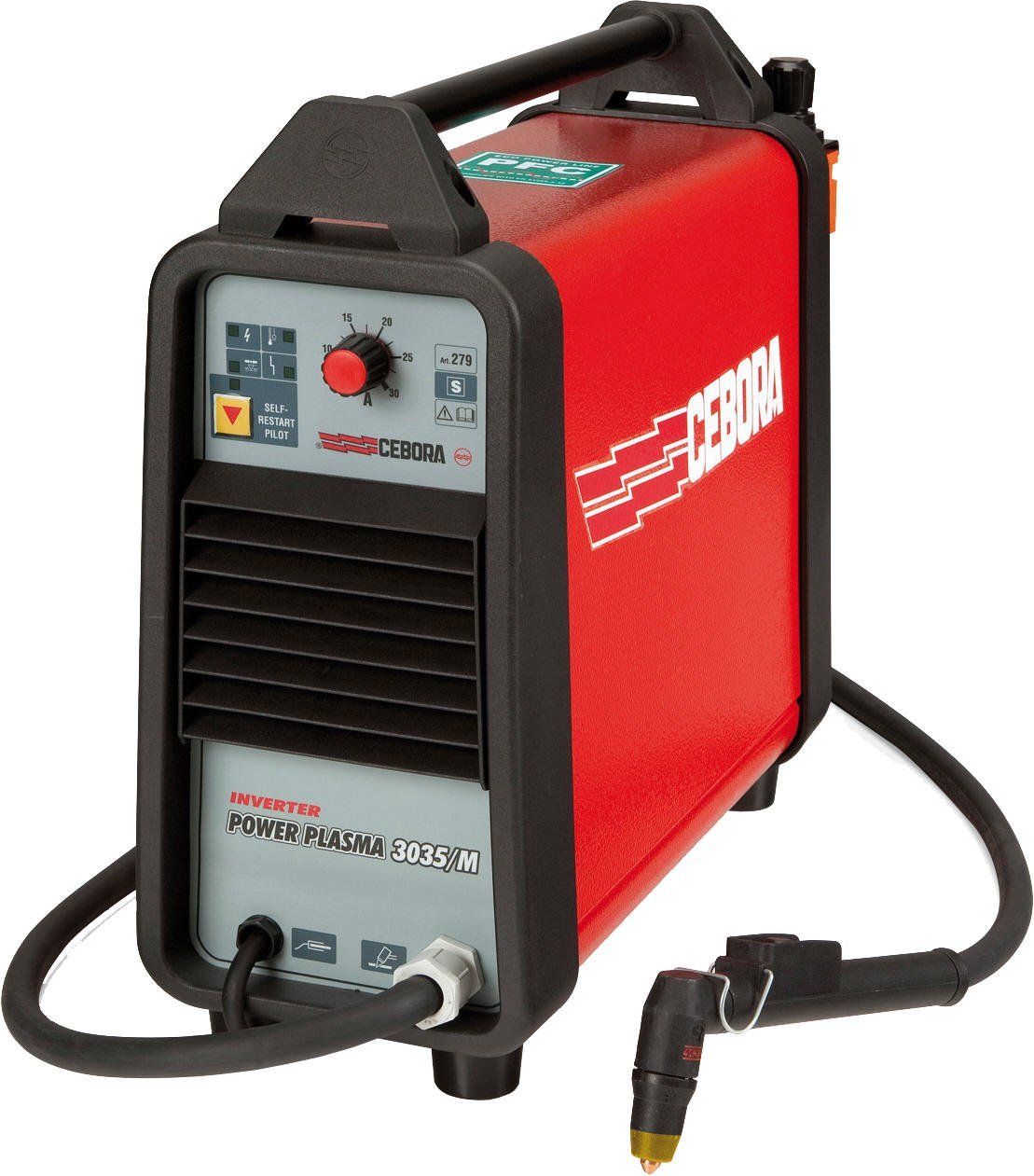

Power Plasma 3035/M Plasma Inverter

POWER PLASMA 3035/M was created to meet the need of working in the body shop with an easy to handle, easy to use power source with minimal system requirements yet able to ensure excellent quality cutting on all metals, including the new high-strength steels.

POWER PLASMA 3035/M weights just 13 kg including the torch, and requires single-phase power supply; it works with compressed air or nitrogen (for high-quality cutting), provided at a pressure of 3.5 bar, with an air flow of just 60 l/min (and may thus be powered by a 25-l compressor).

The recommended thickness, for the best cutting quality and productivity, is 8 mm; the maximum thickness is 12 mm and the severance thickness is 15 mm.
  • Automatic voltage change (115/230 V +15% / -20%).
  • Pilot arc operating mode, which makes it possible to work even on painted or coated metals.
  • Pilot self-restart, selectable from the panel, to interrupt and automatically reset the arc when cutting screens and grids, increasing operator productivity.
  • Nozzle holder protection, as required by standards IEC 60974-7, which eliminates the risk to the operator of direct accidental contact with the gas nozzle.
  • High voltage arc striking with high frequency, to ensure reliable lighting of the pilot arc and reduced disturbances.
  • High electromagnetic compatibility, per EN50199, allowing the power source to be used in the vicinity of electronic equipment (such as computers, PLC, etc.).
  • Explosion-proof protection of the air reducer unit.
The power source is particularly suitable for cutting the overlapped sheets that are commonly used in the car bodies

The compliance with EN 61000-3-12 brings substantial energy saving and a wide supply voltage tolerance (+15% / -20%).

The power source can also be powered by motor-driven generators of adequate power (min. 6KVA).

Spotters

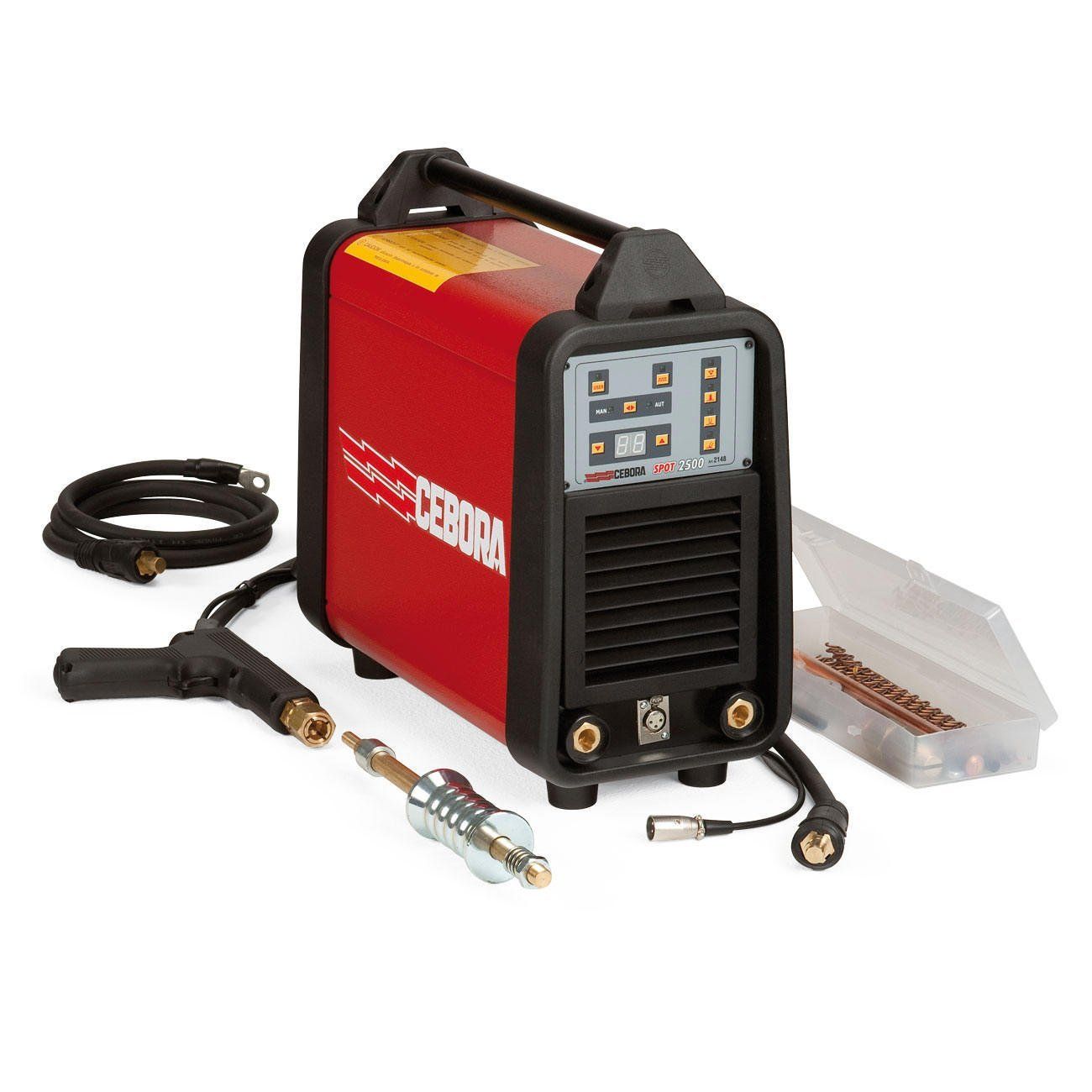

Spot 2500 - Art.2148

Cebora offers the auto body industry the new multi-purpose power source Spot 2500 (art. 2148), with electronic adjustment, synchronous control and digital panel, ideal for body repairs of the conventional sheet metals, except aluminium.

The Spot 2500 allows you to work in manual/automatic mode, perform rosette spot-welding, insert spot-welding, metal pressing, metal heating, pulse heating.

The "USER" function allows you to customize the settings. The spot-welding gun includes a button that allows rapid remote selection of the functions on the panel of the power source.

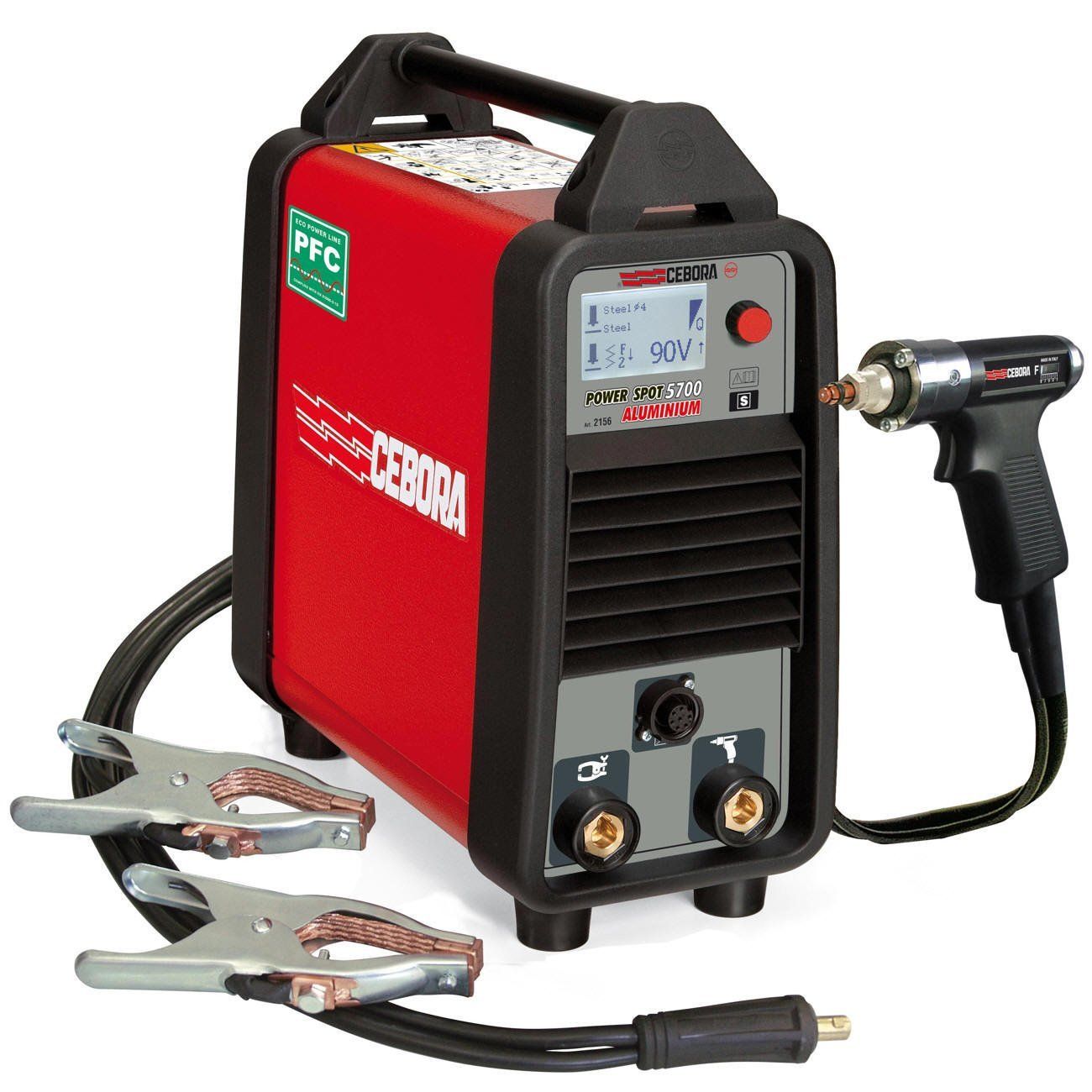

Power Spot 5700 Aluminium Art.2156

The Power Spot 5700 “Aluminium” is a compact and lightweight portable stud welder which through capacitor discharge technology welds in a few milliseconds weld studs up to Ø 8 mm on ferrous and non-ferrous metals with excellent aesthetic results and without alteration of the underlying sheet metal.

The welding of the stud is simple and immediate. It does not require shielding gas or special preparations nor machining of the work piece.
Its technical features make the Power Spot 5700 “Aluminium” the ideal tool for welding aluminium or steel studs in the field of auto body repair and also for applications such as customizing of vehicles, fastening of paneling and of internal elements, etc.

The maneuverability and ease of use of the standard gun and the double ground cable and clamps allow the welding of studs even in the most difficult places to reach, thus making the Power Spot 5700 the ideal solution. The LCD panel displays in a simple and intuitive way the operational functions such as:

selection of stud material and diameter
selection of base material to which the stud should be welded
indication of the working voltage
indication of the applied force
weldability check between stud and base material
The power source comes with gun and ground cable with two clamps.

Complies with IEC 61000-3-12
